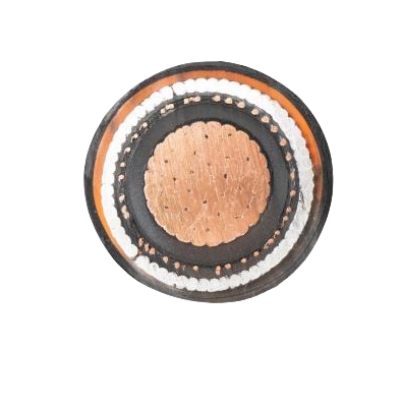

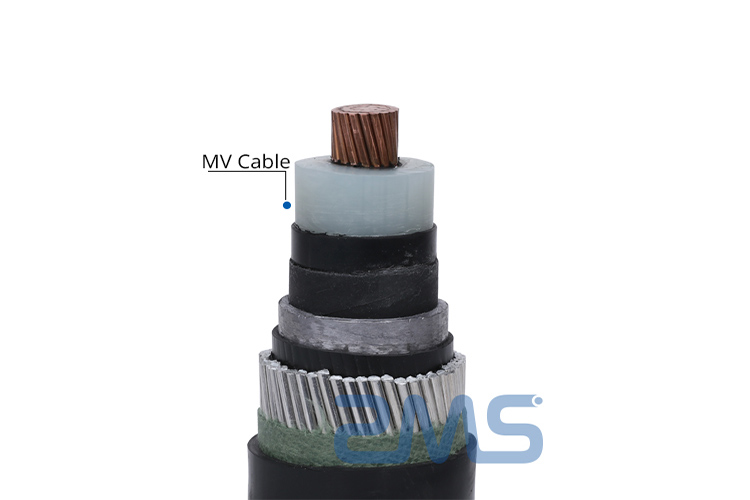

BS 6622/BS 7835 Standard Single-Core MV Cables
Kaiwhakahaere: Plain Annealed Copper or Aluminum
Outer Jacket: PVC/PE/LSZH
Wewete: XLPE/EPR
Insulation Layer Parameters:
|
Wāhanga Ripeka Ingoa
|
Thickness of Insulation at Nominal Voltage
|
||||
|---|---|---|---|---|---|
|
|
3.8/6.6Kv (Um=7.2KV)
|
6.35/11Kv (Um=12KV)
|
8.7/15Kv(Um=17.5KV)
|
12.7/22Kv(Um=24KV)
|
19/33Kv(Um=36KV)
|
|
mm2
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
70 – 185
|
2.5
|
3.4
|
4.5
|
5.5
|
8.0
|
|
240
|
2.6
|
3.4
|
4.5
|
5.5
|
8.0
|
|
300
|
2.8
|
3.4
|
4.5
|
5.5
|
8.0
|
|
400
|
3.0
|
3.4
|
4.5
|
5.5
|
8.0
|
|
≥500
|
3.2
|
3.4
|
4.5
|
5.5
|
8.0
|
Nga ahuatanga o te tinana:
Operating Temperature: ki te 90°C
Temperature Range: -5° C (Koti PVC); -20° C (koti PE)
Short-Circuit Temperature: 250° C (te roanga teitei o te ara-poto kaua e neke ake i te 5s)
Bending Radius: 12 x MAI
|
Ngaohiko Whakatau Uo/U
|
Ngaohiko Mahi (Um)
|
Test Voltage (rms)
|
|---|---|---|
|
3.8/6.6Kv
|
7.2Kv
|
|
|
6.35/11Kv
|
12Kv
|
25.5Kv
|
|
8.7/15Kv
|
17.5Kv
|
35Kv
|
|
12.7/22Kv
|
24Kv
|
51Kv
|
|
19/33Kv
|
36Kv
|
76Kv
|
APPLICATION:
The standard power single-core cables have a voltage range from 3.8/6.6KV to 19/33KV and a frequency of 50Hz. they are mainly used in a variety of places such as power supply stations, whakatakotoranga o roto me waho, in pipelines and tunnels, in mines and shafts, in direct burial in the soil and underwater at the bottom of the sea, take. They are capable of withstanding considerable pressures and mechanical external forces, and axial tensile forces.
