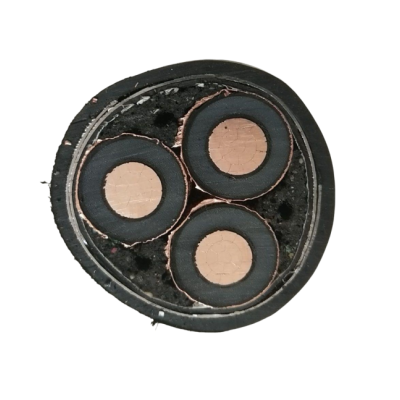

IEC 60502 Paerewa e toru nga taura matua
Kaiwhakahaere: Te parahi annealed, te kaiwhakahaere konumohe ranei.
Te whakamarumaru a te kaikawe: Ko te parepare kawe kia kaua he konganuku, me te whakauru he puhui hau-whakahaere kua tangohia me te takai hikoi i utaina ki runga ake o te puhui semiconductor.. Kaore e hiahiatia te whakangungu rakau mo te PVC, EPR/HEPR taura arai i roto i te awhe 1.8/3KV ki te 3.6/6KV.
Wewete: 1.8/3Ko nga awhe taura KV me te 3.6/6KV kei te nuinga o te waa ka whakamaarama ki te PVC, engari ka taea hoki te wetewete ki te XLPE, EPR/HEPR.
Te whakarewa/kaiwhakahaere/whakarewa
Whakapiri
Haana (kōwhiringa)
Waea Porohita Waea Armoured Cable Diameter
|
Diameter Mariko I raro i te Apa Armour (mm)
|
Diamita taura Armoured (mm)
|
|
|---|---|---|
|
>
|
<
|
|
|
-
|
10
|
1.25
|
|
10
|
15
|
1.25
|
|
15
|
25
|
1.6
|
|
25
|
35
|
2.0
|
|
35
|
60
|
2.5
|
|
60
|
-
|
3.15
|
Te Matotoru Papa Haana
|
Diameter Mariko I raro i te Apa Armour (mm)
|
Piauau Steel/Steel (mm)
|
Konumohe / Aluminium Alloy (mm)
|
|
|---|---|---|---|
|
>
|
<
|
|
|
|
-
|
30
|
0.2
|
0.5
|
|
30
|
70
|
0.5
|
0.5
|
|
70
|
-
|
0.8
|
0.8
|
Āhuatanga ā-tinana:
Te pāmahana whakahaere: ki te 70°C (te whakamahana PVC); ki te 90°C (XLPE, EPR ranei te whakamarumaru)
Awhe pāmahana: -5° C (Koti PVC); -20° C (koti PE)
Paemahana-poto (te roanga morahi i roto i te waa-poto kaore e neke ake i te 5s): 140-160° C ( Puka PVC ); -40° C ( Puapu PE ); -20° C ( Puapu PE )
250° C (koti PE)
Putoro piko: 15 x MAI
|
Wāhanga Ripeka Ingoa (mm2)
|
|
Tauera Karekau
|
Waea Waea Porowhita
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Matotoru Ingoa Waiata (mm)
|
Te Matotoru Taha Parahi (mm)
|
Waea Waea Parahi Wahine (mm2)
|
Te Matotoru Koti Nominal (mm)
|
AO Diamita (mm)
|
Taumaha Tata (kg/km)
|
Matotoru Papa Ingoa (mm)
|
Matotoru Haana (mm)
|
AO Diamita (mm)
|
Te taumaha tata (kg/km)
|
|||
|
CU
|
AL
|
CU
|
AL
|
||||||||||
|
10
|
2.0
|
0.1
|
16
|
1.8
|
23
|
650
|
460
|
1.2
|
1.6
|
1.8
|
28
|
1480
|
1290
|
|
16
|
2.0
|
0.1
|
16
|
1.8
|
24
|
840
|
540
|
1.2
|
1.6
|
1.9
|
29
|
1720
|
1410
|
|
25
|
2.0
|
0.1
|
16
|
1.8
|
26
|
1160
|
680
|
1.2
|
1.6
|
1.9
|
32
|
2130
|
1650
|
|
35
|
2.0
|
0.1
|
16
|
1.8
|
29
|
1490
|
820
|
1.2
|
2.0
|
2.1
|
36
|
2810
|
2140
|
|
50
|
2.0
|
0.1
|
16
|
1.9
|
32
|
1900
|
1000
|
1.2
|
2.0
|
2.2
|
39
|
3340
|
2450
|
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
...
|
Taupānga:
Ko nga taura e toru-matua kua hangaia mo te tohatoha hiko mai i te 3.6/6.6KV ki te 19/33KV i te 50Hz. Ka whakamahia te nuinga i roto i te whānuitanga o nga tono penei i nga teihana hiko, nga awa o roto, waho, tanumia ana ki te wai, mo te whakaurunga o nga taura ki te ahumahi, teihana tohatoha, me nga taura teihana hiko.
